Rugged and Basic 2M with Powerful Audio!

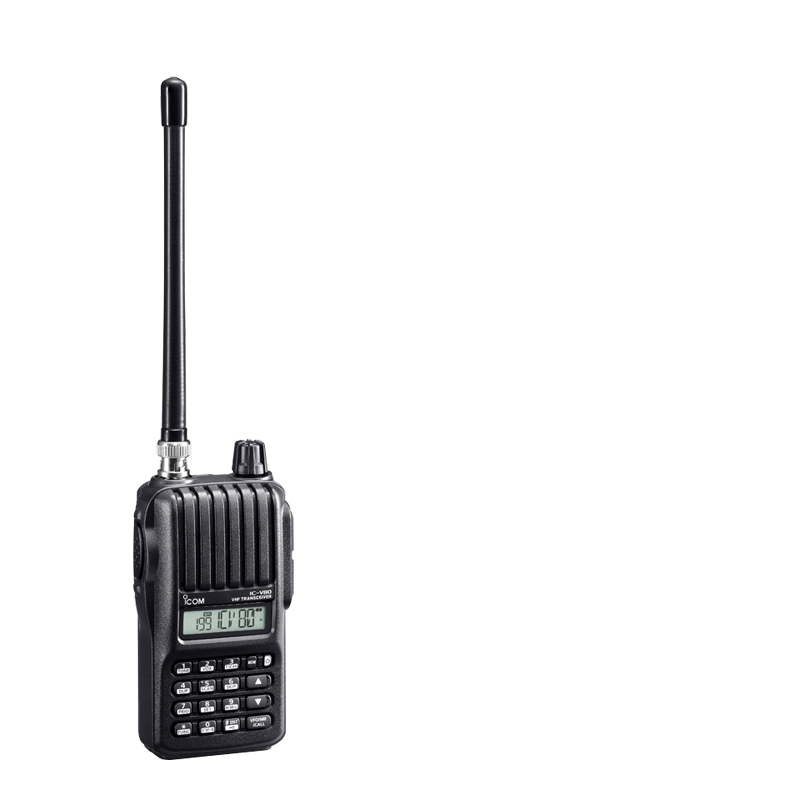

Icom radios are built tough,and the IC-V80/E-Icom`smost economical 2M – is no exception. This military rugged rig offers water resistance and superior protection against dust and dirt (IP54). Compact, rugged and with plenty of power, the IC-V80/E is ideal for basic, on-the-go ham operations.
750mW loud audio
The IC-V80/E uses the BTL (bridge-tied load) amplifier that doubles the audio output. The 36mm large speaker delivers 750mW of loud and intelligible audio*. Great for noisy environments.
* Typical value using with internal speaker.
Powerful 5.5W of output power
The IC-V80/E offers a just-right mix of power and size. 5.5 watts of high power will work to get your message through. Get up to 19 hours* of operating time with the Li-ion battery pack (BP-265) or 13 hours with the Ni-MH (BP-264). All that power comes is an easy to hold and use size – not too big, not too small.
* Typical operation. 5:5:90 duty cycle with power save on.
IP54 and MIL-STD-810 rugged construction
The dust protection and water-resistance equivalent to IP54 provides reliable operation for practical outdoor operation. The IC-V80/E tested to and passed 11 categories of MIL-STD-810 environmental tests.
A total of 207 memory channels
The IC-V80/E has a total of 207 memory channels, including 200 regular channels, 6 scan edges and 1 call channel. The channel name is programmable with 5 characters for easy recognition.
Built-in CTCSS/DTCS
The CTCSS and DTCS tone codes provide quiet stand-by and allow you to use tone-access repeaters. The pocket beep alerts you when a matching tone frequency is received. The tone scan detects the subaudible tone that is used for repeater access.
Internal VOX function
The IC-V80/E has internal VOX (Voice Operated Transmit) function for convenient handsfree operation with a compatible optional headset and plug adapter cable. Also, the VOX gain and VOX delay time are adjustable.
Other features
- WX channel and weather alert function (USA version only)
- Program, memory, skip, priority and tone scans
- Power save function
- BNC type antenna connector
- Automatic repeater function (USA version only)
- 1750Hz tone for European repeater access (IC-V80E only)
- TOT (time out timer) setting
- Repeater lockout and busy channel lockout
- PC programmable with optional CS-V80
- Transceiver-to-transceiver cloning (Optional)
- Direct keypad frequency entry
- DTMF autodial memories
- Auto power off
- LCD backlight
- Wide/narrow channel spacing
*Specifications
Frequency coverage
(Differs according to version) |
IC-V80(U.S.A.):
Tx 144–148MHz
Rx 136–174MHz*1
IC-V80E(Europe):
Tx 144–146MHz
Rx 144–146MHz |
Dimensions
(W×H×D; Proj. not included) |
58×112×30 mm;
29⁄32×413⁄32×13⁄16 in |
Weight
(approx.) |
360g; 12.7oz
with antenna and BP-264 |
Output power
(typical values) |
5.5W, 2.5W, 0.5W
at 7.2V DC |
Sensitivity
(at 12dB SINAD) |
0.14μV typ. |
Audio output power
(at 10% distortion) |
750mW typ. (Internal SP, 16Ω load)
450mW typ. (External SP. 8Ω load) |
*Options
BATTERY CASE
BP-263AA(LR6)×6 cells |
|
|
|
BATTERY PACKS
BP-264 7.2V/1400mAh
(Ni-MH) |
BP-2657.4V/1900mAh (min.), 2000mAh (typ.)
(Li-Ion) |
|
|
DESKTOP CHARGERS
BC-192Regular charger for BP-264 (Ni-MH battery)
(Use with BC-147S) |
BC-191Rapid charger for BP-264 (Ni-MH battery)
(Use with BC-123S)
|
BC-193Rapid charger for BP-265 (Li-Ion battery)
(Use with BC-123S) |
|
AC ADAPTERS
BC-147S* 12V/200mA
(Use with BC-192) |
BC-123S*12V/1A
(Use with BC-191 or BC-193) |
|
| * BC-123SA/BC-147SA for 120V AC. SE for 230V AC. SV for 240V AC.
POWER SUPPLY CABLES
CP-23LCigarette lighter cable
(Use with BC-191 or BC-193) |
OPC-515LDC power cable
(Use with BC-191, BC-192 or BC-193) |
|
|
SPEAKER-MICROPHONES
HM-158L
|
HM-159L
|
|
|
EARPHONE-MICROPHONE
HM-153L |
|
|
|
HEADSETS
HS-94 (Use with OPC-2004) |
HS-95 (Use with OPC-2004) |
HS-97(Use with OPC-2004) |
|
PLUG ADAPTER CABLE
OPC-2004 |
|
|
|
BELT CLIP
MB-124Alligator type |
|
|
|
CLONING CABLES
OPC-474
Between
transceivers |
OPC-478 UC
Transceiver to PC
USB cable |
OPC-478
Transceiver to PC
RS-232C cable | |
